Features
1. Outer and Inner cover with excellent abrasion resistance and UV protection.
2. Wearing colored indicator layers.
3. Foam flotation casing to prevent water absorption.
4. Bear the high pressure of work.

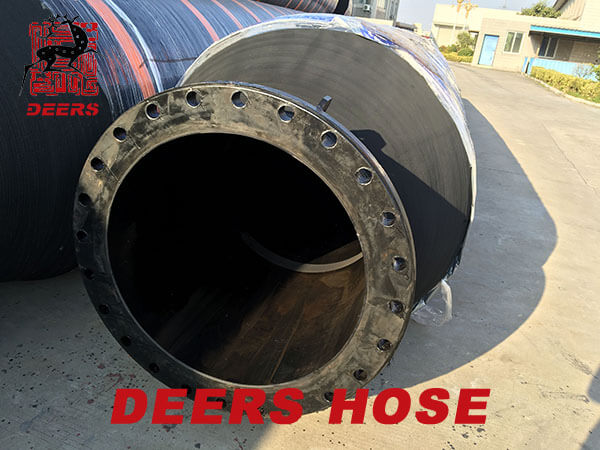

5. The size of the flange is at the customers’ request.
6. Bending angle: in working condition, the bending angle is from 0° to 45°.
7. Low center of gravity, strong ability of the anti-wave, good stability.
| DN(mm) | Flange OD (mm) |
Flange thickness (mm) |
P.C.D. (mm) |
No.of Hole | Hole dia. (mm) |
Length (mm) |
|---|---|---|---|---|---|---|
| 500±5 | 775±3 | 35±2 | 725±1 | 20 | 30±1 | 11800 |
NOTE: The specification is for reference, the Floating hoses can be customized according to client’s requests.

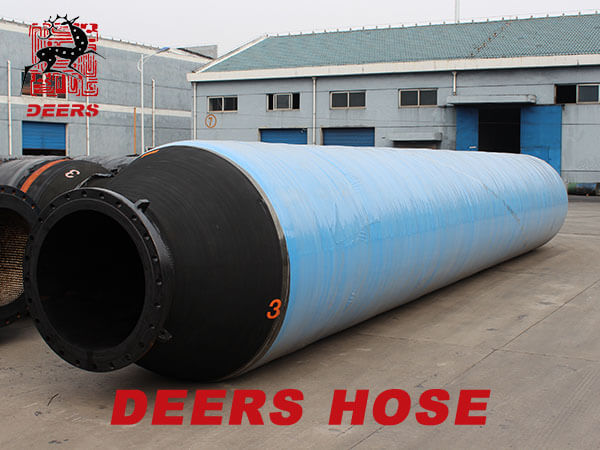

Floating hose is widely used in dredgers for silt/gravels conveyance. The suitable transmission medium is usually mud, clay, fine sand, fine-mid sand and so on.
Inner cover has excellent abrasion-resistance. It can protect the hose from the friction of depositional silt. And the colored indication layers can reflect the degree of the abrasion effectively. This can guarantee the normal use of the floating hose.
With the deep understanding of the floating discharge hoses, the advantages of convenience and stability have been recognized by most of the customers. And the application of floating discharge hoses at sea becomes more widely.
Structure:
1. Internal rubber layer: high-quality NR, SBR, BR
2. Inner rubber layer thickness: 15-45mm
3. Reinforcement layer: strong tire cord and Floating material layer
4. Inner rubber layer: SBR and CR blend
5. Length: usually 5.8m or 11.8m or at customer’s request
Our self-floating hose passes 100% dimension measurement according to our customer’s requirements. And the bending degree can reach 90 degrees under working pressure.
