Features
1.Long service time
2.Excellent anti-corrosion performance
3.Good tear and wear strength resistance
4.Working pressure: up to 1.6Mpa
5.Easy to handle
If you have any questions or concerns about our products, please feel free to contact us
A. Flexible Flange
| ID(mm) | Flange OD (mm) |
Flange thickness (mm) |
P.C.D.(mm) | No.of Hole | Hole die. (mm) |
|---|---|---|---|---|---|
| 240 | 330 | 22±2 | 295 | 8 | 23±1 |
B.Flange Stub
| ID(mm) | Flange OD (mm) |
Flange thickness (mm) |
Length (mm) |
Stub thickness (mm) |
|---|---|---|---|---|
| 216±2.3 | 255±3.5 | 22±2 | 140±3 | 12.7±2 |
C. HDPE Pipe
| ID(mm) | OD(mm) | Wall thickness (mm) |
|---|---|---|
| 200 | 216 | 8 |
NOTE: The specifications are for reference, the HDPE Pipe can be customized according to the client’s requests.
Dredge HDPE pipe is an ideal replacement of “plastic instead of steel” products, which can be used for low-pressure liquid delivery, such as water, gas, and oil.
The product is of high strength, lightweight, no corrosion, resistance to negative pressure, easy installation, etc. And it has low-temperature resistance and anti-aging performance. Nowadays, HDPE pipe with PE floaters is the most favorable combination in the dredging pipeline system.

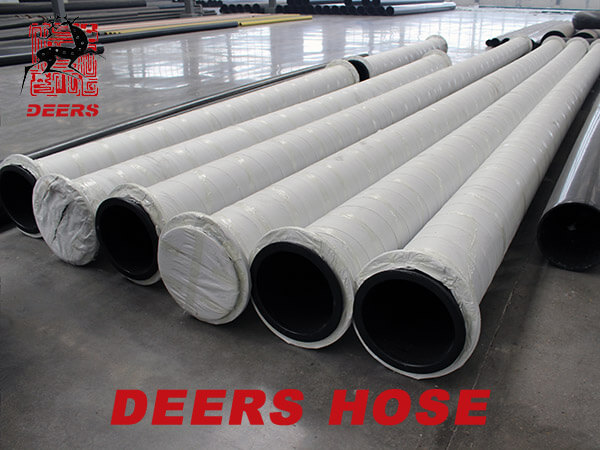

For large diameter HDPE Pipe, we load by lifting in our factory.
With a rich experience of logistics, we Nanjing Deers can ensure good maintenance during the shipment.
We always use OT containers to load pipes to match different diameter pipelines so that will save shipping cost for our customers.

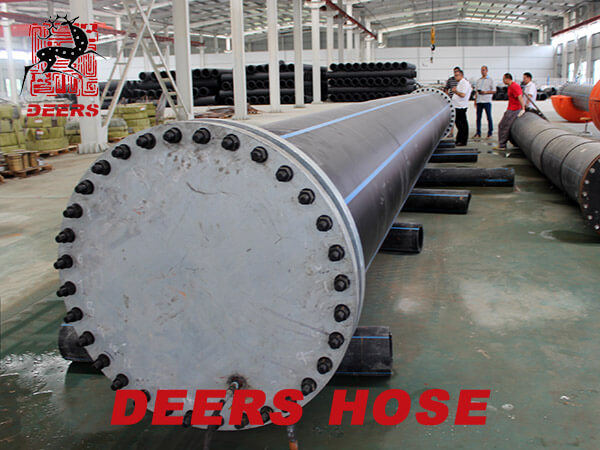

And we also have good protection for the flanges.
