Features
1.Versatile hand-built construction.
2.Absorbs directional movement
3.Absorbs vibration, noise, and shock
4.Compensates for misalignment
5. Virtually eliminates sediment buildup
6. Special grooved flange ring design, prevent rubber end pulling out
7. Solid galvanized steel floating flanges speed the installation time
| DN(mm) | Flange OD (mm) |
Flange thickness (mm) |
P.C.D. (mm) |
No. | Hole dia. (mm) |
Length (mm) |
|---|---|---|---|---|---|---|
| 500±5 | 775±3 | 35±2 | 725±1 | 20 | 30±1 | 11800 |
NOTE: The specifications are for reference, the rubber expansion joint can be customized according to the client’s requests.

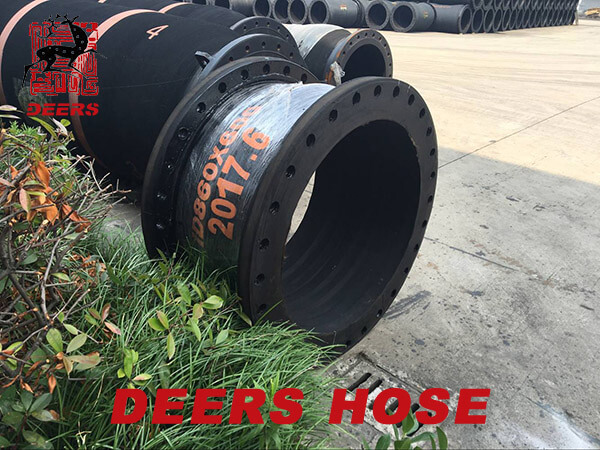

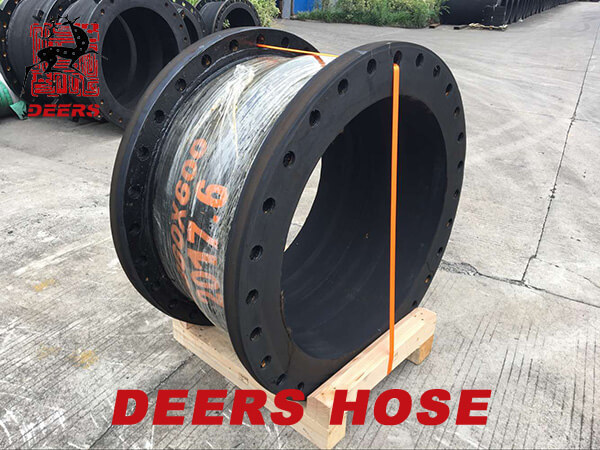

Rubber Expansion Joints are designed for piping systems to absorb pipe movements, relieve stress, reduce system noise vibration, compensate for misalignment/offset and to protect rotating mechanical equipment against start-up surge forces.
Our self-floating hose passes 100% dimension measurement according to our customer’s requirements. And the bending degree can reach 90 degrees under working pressure.
